MBD Workflow & CAD Translation

What MBDVidia does:

  • Publish any CAD file into neutral CAD file (QIF or STEP AP242).
  • MBD data for downstream use in manufacturing, quality, and supply chain (e.g. automated FAI, CMM, etc.)
  • PLM integration and measurement data harvesting: Digital Twin.

MBDVidia Benefits:

  • Save up to 80% of hours spent on annotating, machining, and inspection.
  • Save up to 88% time spent on first article inspection report (FAIR) creation.
  • First (and easiest) step of the MBD and MBE journey.
Derivative CAD Validation & Revision Comparison

What CompareVidia does:

  • 3D translation validation software for native, neutral, and derivative CAD files.
  • Manage engineering change orders (ECO) by comparing CAD revisions.
  • Boeing Spec D6-51991 DPD requirement validation
    & other compliance standards.

CompareVidia Benefits:

  • Catch CAD errors before manufacturing, cost savings up to 2-5X.
  • Get digitally certified pass/fail reports for validated CAD models.
  • Reliably reuse CAD for downstream use: CAM, CMM, CNC, etc.
MBDConnect for Creo, NX. FormatWorks for SolidWorks.
Native CAD Plug-ins for Exporting QIF, STEP AP242, and Other MBD Data

What MBDConnect CAD plug-ins do:

  • Native CAD support for exporting into neutral CAD (QIF and STEP AP242).
  • 2D CAD drawing to 3D PMI for Creo. Upgrade legacy data.
  • Use MBD CAD data for downstream manufacturing and inspection software.

MBDConnect CAD plug-in benefits:

  • 81% reduction in CMM workflow.
  • Native plug-in for easy export options.
  • Create neutral CAD derivatives that map back to the source model.

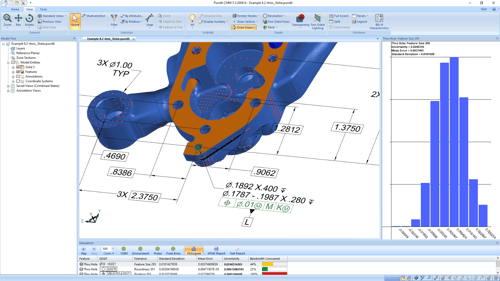

Measurement Uncertainty Simulation

What Pundit does:

  • Inspection simulation that calculates task-specific measurement
    uncertainties for CMM measurements.
  • Identifies potential issues before actual measurements are made and before product designs are finalized.
  • Helps meet ISO 17025 requirements.

Pundit benefits:

  • Reduce measurement uncertainty up to 4X or more.
  • Improve your confidence in the measurement task at hand.

pundit (1)
Auto-Balloon 2D Drawings

What Balloon 2D does:

  • Auto-ballooning software for capturing annotations from 2D engineering drawings.
  • Convert into machine-readable Bill of Characteristics for automated inspection planning, reporting, and workflows (AS9102, FAI, PPAP, etc.)
  • Publish to PDF, HTML, Excel, and Net-Inspect.

Balloon2D Benefits:

  • Save up to 50-80% time on inspection reports.
  • Eliminate manual entry errors and time burden.
  • Balloon2D is part of MBDVidia allowing for optional 2D, 3D, or dual 2D/3D workflows.


Software | Services | Support | Projects

Capvidia focuses on true MBD workflows: 3D CAD translation & validation featuring MBD CAD with semantic PMI that is human & machine-readable for downstream use from design to manufacturing.

With one single source of truth, interoperable data is shared among different teams, partners, and personnel with their current systems (CAD, CAM, CMM, etc.) powering automation, AI, and Big Data insights.

We've been trusted for over 26 years pertaining to all things CAD software.
